VMC SERIES · 3-AXIS / 4-AXIS READY

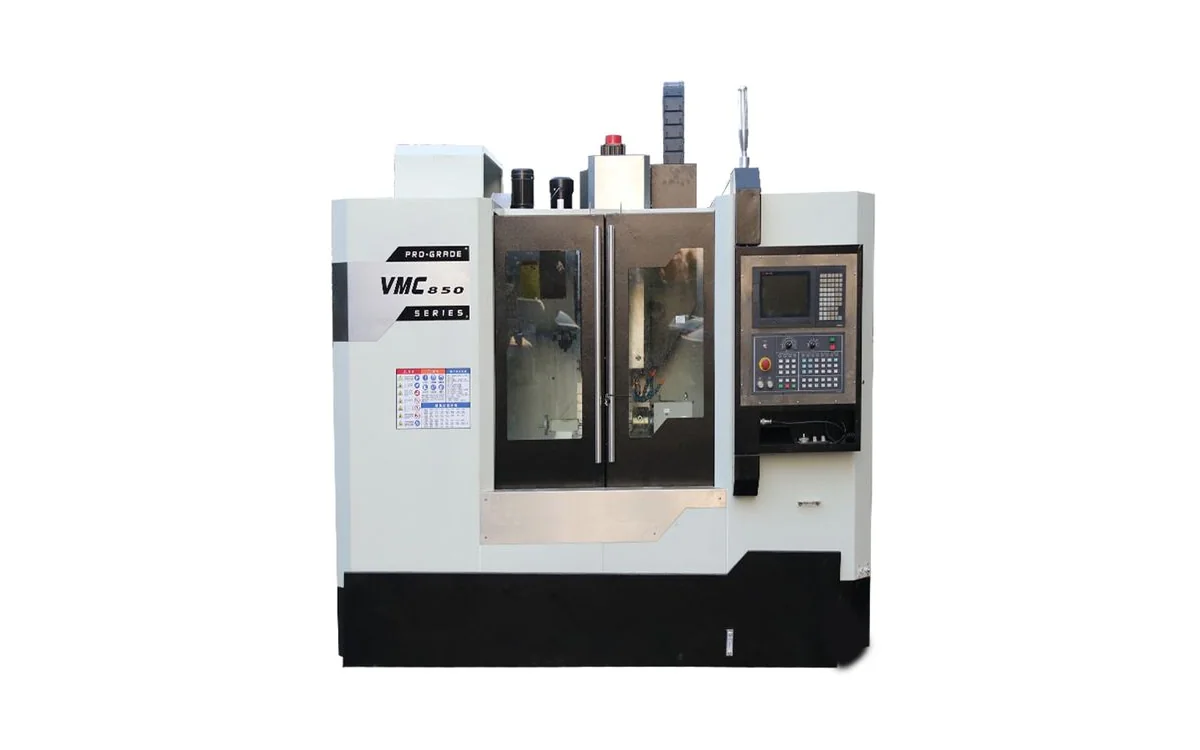

VMC850
VMC850 High-Rigidity 3-Axis Vertical Machining Center
- X / Y / Z Travel
- 850 × 500 × 550 mm
- Spindle Speed
- 10,000 rpm (BT40)
- Rapid Traverse
- 36 / 36 / 32 m/min
- Positioning Accuracy
- ±0.004 mm
CNC MACHINE TOOL MANUFACTURER · ISO 9001:2015
CNC Lathes & Vertical Machining Centers.
Three core machine tool lines built on HT300 cast iron beds: VMC series 3-axis vertical machining centers (VMC650, VMC850, VMC855), TCK series 45° slant-bed CNC lathes (TCK50, TCK52, TCK56), and CK series flat-bed CNC lathes (CK6140, CK6150, CK6160).
- ±0.002 mm
- Repeatability (ISO 230-2)
- 9 Models
- VMC · TCK · CK Series
- HT300
- Tempered Cast Iron Beds
- 48 Hours
- Pre-Shipment Running Test
Nine standard models covering prismatic milling, chucking/bar turning, and long-shaft work.
Our VMC Series (VMC650, VMC850, VMC855) handles 3-axis vertical milling, drilling, and rigid tapping with X/Y/Z travels from 650×400×500 mm to 850×550×550 mm, 8,000–12,000 RPM BT40/BBT40 spindles, and 24-tool arm ATCs. The TCK Series (TCK50, TCK52, TCK56) uses a one-piece 45° slant-bed casting, roller linear guideways, 8-to-12-inch hydraulic chucks, and 12-station turrets for parts up to Ø460 mm. For long shafts and heavy pipe work, the CK Series (CK6140, CK6150, CK6160) features induction-hardened flat bedways (HRC 52+), 400–600 mm swing over bed, Ø52–Ø105 mm spindle bores, and center distances up to 3,000 mm.
Explore the Lineup.
Browse specifications by machine series or compare travel, swing diameter, and spindle capacity across all models.
Vertical Machining Centers (VMC650 / VMC850 / VMC855)
High-speed BT40/BBT40 vertical milling platforms built on Fine-Grain HT300 castings with preloaded roller linear guideways and 1.8s dual-arm ATCs.
VMC SERIES · COMPACT HIGH-SPEED MILLING

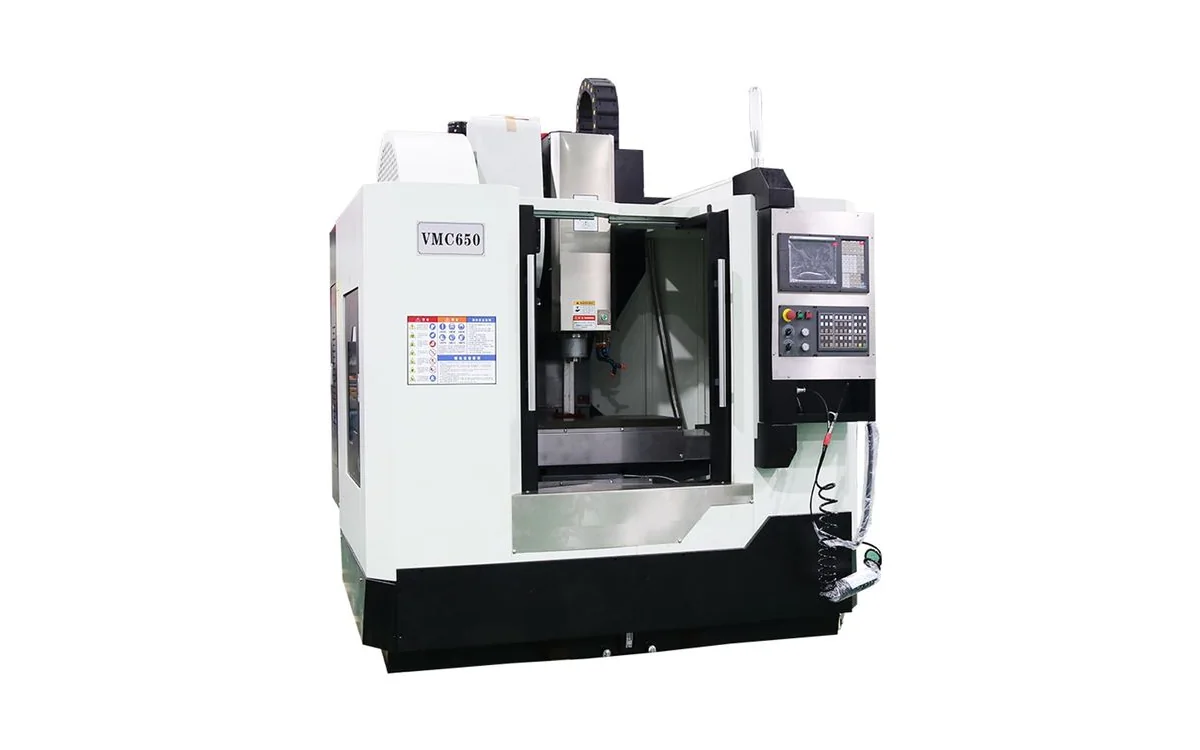

VMC650
VMC650 Compact High-Speed Vertical Machining Center
- X / Y / Z Travel
- 650 × 400 × 500 mm
- Spindle Speed
- 12,000 rpm (BT40)
- Rapid Traverse
- 36 / 36 / 32 m/min
- Positioning Accuracy
- ±0.003 mm
VMC SERIES · MOLD & DIE HEAVY MILLING

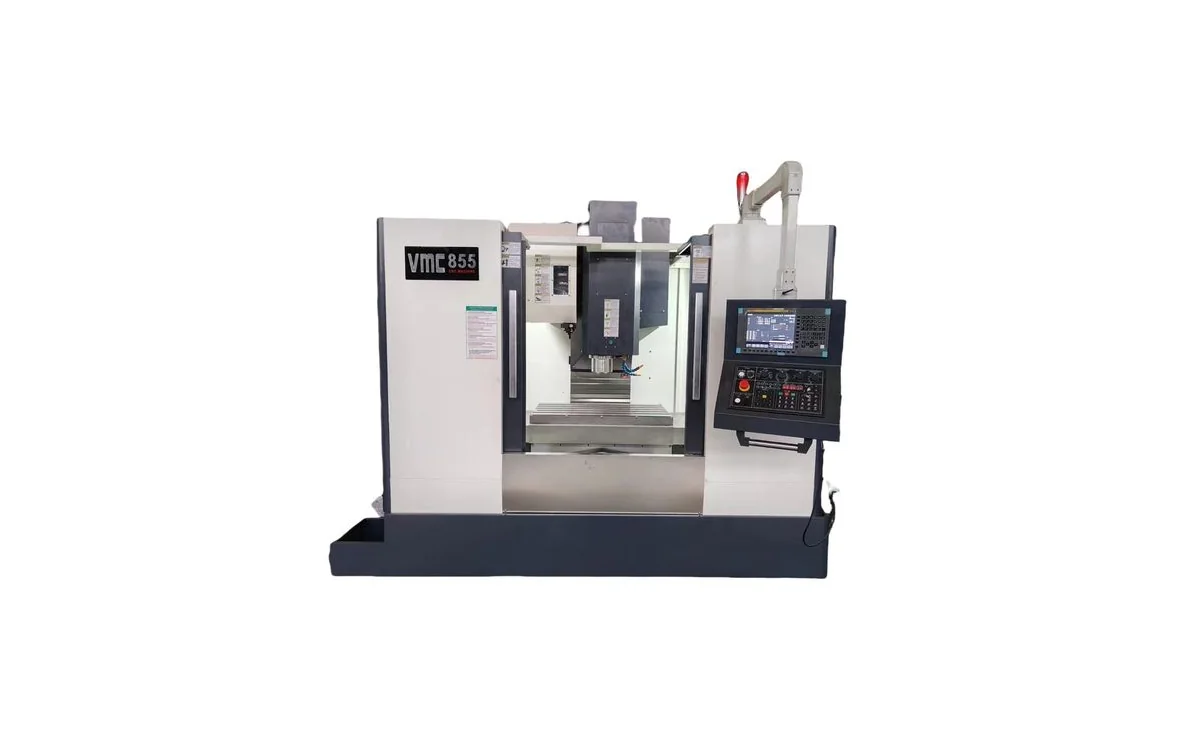

VMC855
VMC855 Heavy-Duty Wide-Saddle Vertical Machining Center
- X / Y / Z Travel
- 850 × 550 × 550 mm
- Spindle Torque / Power
- 15 / 18.5 kW (BBT40)
- Guideways (X / Y / Z)
- 45 / 45 / 45 mm Roller
- Positioning Accuracy
- ±0.003 mm
Slant-Bed CNC Turning Centers (TCK50 / TCK52 / TCK56)
True 45° one-piece cast-iron slant-bed CNC lathes delivering rapid chip evacuation, high-torque A2-6/A2-8 spindles, and ±0.002 mm repeatability.
TCK SERIES · SLANT-BED CNC TURNING CENTER

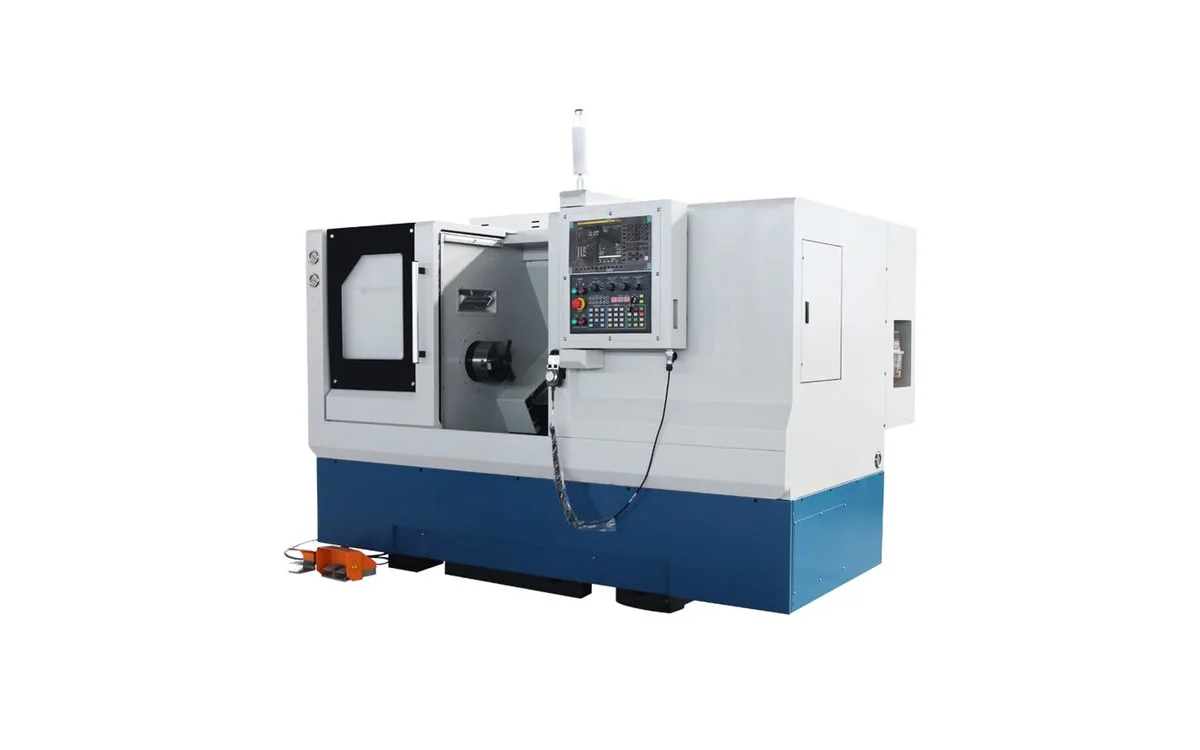

TCK50
TCK50 High-Speed 45° Slant-Bed CNC Turning Center
- Max Turning Dia. × Length
- Ø360 × 500 mm
- Spindle Bore / Bar Cap.
- Ø62 / Ø52 mm (A2-6)
- Spindle Speed & Power
- 4,000 rpm · 11/15 kW
- Positioning Accuracy
- ±0.004 mm
TCK SERIES · BIG-BORE Ø65 MM BAR CAPACITY

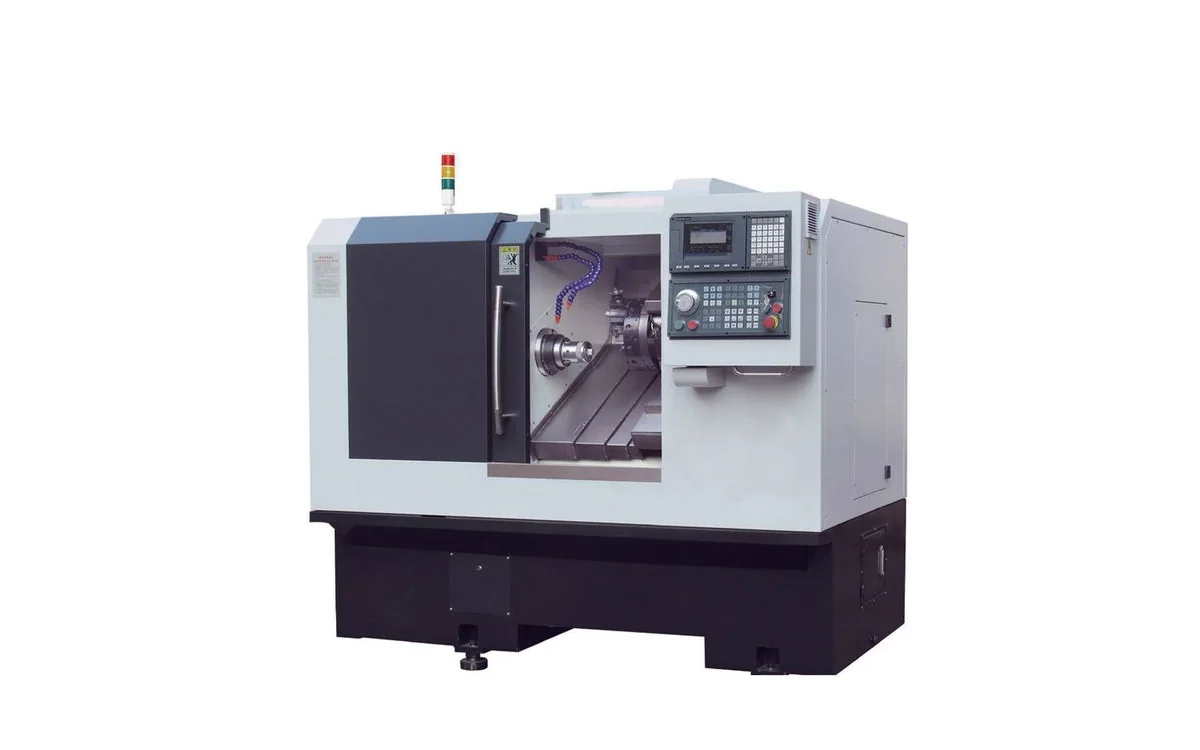

TCK52
TCK52 Big-Bore High-Torque Slant-Bed CNC Turning Center
- Max Turning Dia. × Length
- Ø400 × 550 mm
- Big-Bore Bar Capacity
- Ø65 mm (Ø76 mm Bore)
- Spindle Power & Torque
- 15 / 18.5 kW · 3,500 rpm
- Positioning Accuracy
- ±0.004 mm
TCK SERIES · HEAVY CHUCKING & HARD TURNING

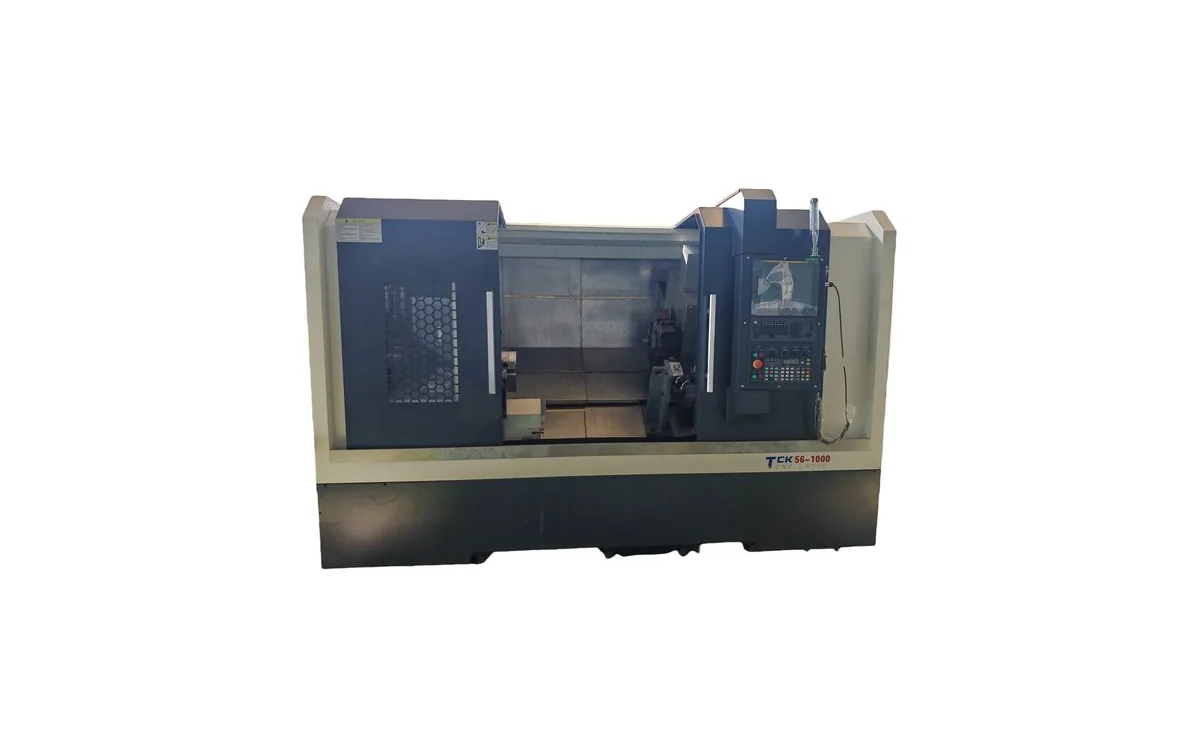

TCK56
TCK56 Heavy-Duty A2-8 Slant-Bed CNC Turning Center
- Max Turning Dia. × Length
- Ø460 × 750 mm
- Chuck & Bar Capacity
- 10" / 12" · Ø78 mm Bar
- Spindle Nose & Power
- A2-8 · 18.5 / 22 kW
- Hard Turning Finish
- Ra 0.4 μm (HRC 62)
Horizontal Flat-Bed CNC Lathes (CK6140 / CK6150 / CK6160)
Heavy-duty horizontal flat-bed CNC lathes with HRC 52+ ultrasonic-quenched bedways, big spindle bores (Ø52–Ø105 mm), and 750–3,000 mm center distances.
CK SERIES · HORIZONTAL FLAT-BED CNC LATHE

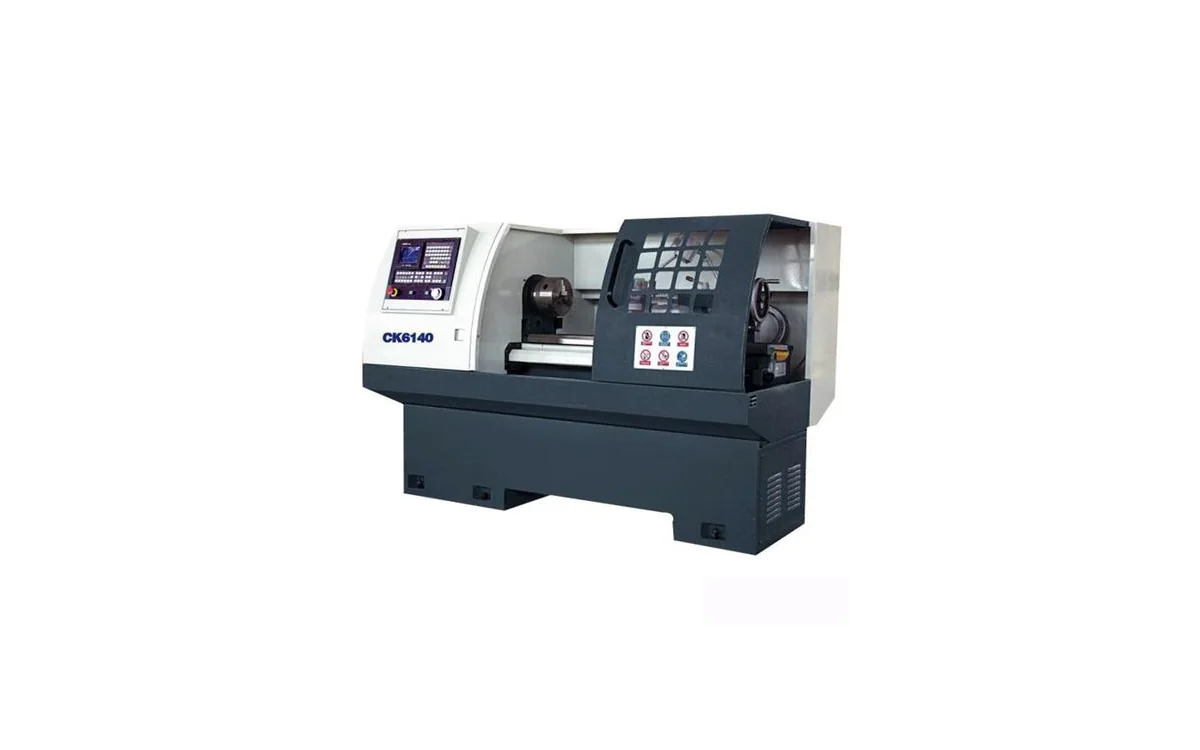

CK6140
CK6140 Precision Horizontal Flat-Bed CNC Lathe
- Max Swing Over Bed
- Ø400 mm
- Distance Between Centers
- 750 / 1000 / 1500 mm
- Spindle Bore & Speed
- Ø52 mm · 2,000 rpm
- Bedway Hardness
- HRC 52–55 (Quenched)
CK SERIES · Ø500 MM SWING & Ø82 MM BORE

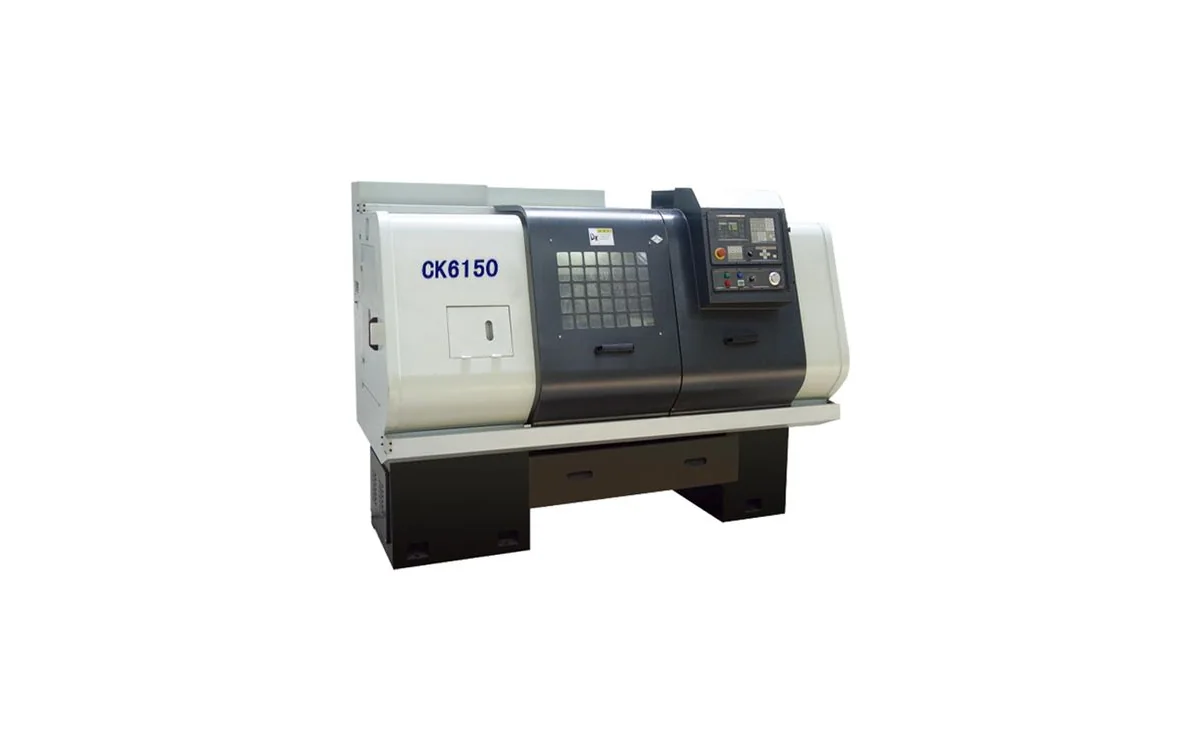

CK6150
CK6150 Medium-Duty Big-Bore Horizontal Flat-Bed CNC Lathe
- Max Swing Over Bed
- Ø500 mm
- Distance Between Centers
- 1000 / 1500 / 2000 / 3000 mm
- Big Spindle Bore
- Ø82 mm (A2-8)
- Main Spindle Power
- 11 kW High-Torque Geared
CK SERIES · Ø600 MM SWING & Ø105 MM BORE

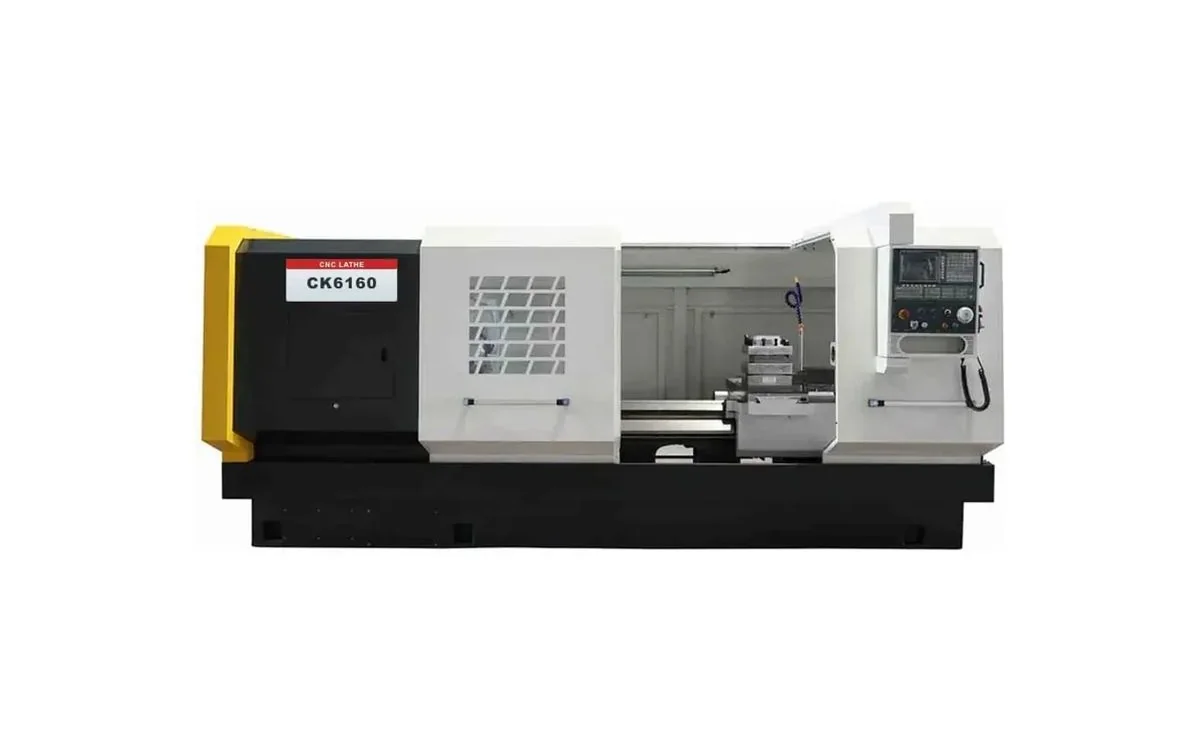

CK6160
CK6160 Large-Swing Ø105 mm Big-Bore Horizontal CNC Lathe
- Max Swing Over Bed
- Ø600 mm
- Distance Between Centers
- 1500 / 2000 / 3000 mm
- Large Spindle Bore
- Ø105 mm (A2-11)
- Main Drive Power
- 15 kW Heavy Geared
Compare All Models.
Side-by-side summary of work envelopes, spindle specifications, and guideway configurations.
| Model | Series | Work Envelope / Swing | Spindle & Rapid | Datasheet |
|---|---|---|---|---|
| VMC850 | VMC SERIES · 3-AXIS / 4-AXIS READY | 850 × 500 × 550 mm | 10,000 rpm (BT40) · 36 / 36 / 32 m/min | VMC850 |
| VMC650 | VMC SERIES · COMPACT HIGH-SPEED MILLING | 650 × 400 × 500 mm | 12,000 rpm (BT40) · 36 / 36 / 32 m/min | VMC650 |
| VMC855 | VMC SERIES · MOLD & DIE HEAVY MILLING | 850 × 550 × 550 mm | 15 / 18.5 kW (BBT40) · 45 / 45 / 45 mm Roller | VMC855 |
| TCK50 | TCK SERIES · SLANT-BED CNC TURNING CENTER | Ø360 × 500 mm | Ø62 / Ø52 mm (A2-6) · 4,000 rpm · 11/15 kW | TCK50 |
| TCK52 | TCK SERIES · BIG-BORE Ø65 MM BAR CAPACITY | Ø400 × 550 mm | Ø65 mm (Ø76 mm Bore) · 15 / 18.5 kW · 3,500 rpm | TCK52 |
| TCK56 | TCK SERIES · HEAVY CHUCKING & HARD TURNING | Ø460 × 750 mm | 10" / 12" · Ø78 mm Bar · A2-8 · 18.5 / 22 kW | TCK56 |
| CK6140 | CK SERIES · HORIZONTAL FLAT-BED CNC LATHE | Ø400 mm | 750 / 1000 / 1500 mm · Ø52 mm · 2,000 rpm | CK6140 |
| CK6150 | CK SERIES · Ø500 MM SWING & Ø82 MM BORE | Ø500 mm | 1000 / 1500 / 2000 / 3000 mm · Ø82 mm (A2-8) | CK6150 |
| CK6160 | CK SERIES · Ø600 MM SWING & Ø105 MM BORE | Ø600 mm | 1500 / 2000 / 3000 mm · Ø105 mm (A2-11) | CK6160 |
Construction & Quality Control.
HT300 Castings & Stress Relief
Beds, columns, and saddles are cast in HT300 gray iron and furnace-annealed twice before finish grinding to prevent long-term frame distortion.
Spindle Assembly & Ballbar Testing
Every machine is checked with a laser interferometer for pitch compensation and a telescopic ballbar for circular interpolation accuracy prior to shipping.
Workpiece Sizing & Test Cutting
Send your part drawing to our engineering team for model selection, chuck/fixture advice, and cycle time estimation within one working day.
Technical Notes & Selection Guides.
Practical comparisons on lathe bed geometry, guideway selection, hard turning parameters, and RFQ preparation.
CNC Turning Architecture ·
Slant-Bed (TCK Series) vs. Flat-Bed (CK Series) CNC Lathes: Total Cost of Ownership, Rigidity & Cycle-Time ROI Guide
Comparison of 45° one-piece slant-bed turning centers (TCK50, TCK52, TCK56) against quenched horizontal flat-bed CNC lathes (CK6140, CK6150, CK6160) across cycle time, thermal drift, and capital payback.
Vertical Milling Engineering ·

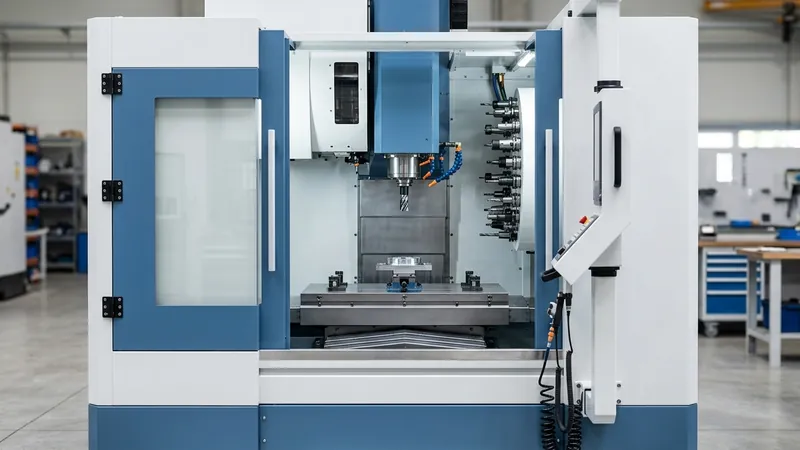

VMC850 vs. VMC855 Vertical Machining Centers: Guideway Architecture, Y-Axis Throat & Spindle Torque Comparison
Why a 50 mm difference in Y-axis travel between the VMC850 and VMC855 actually represents a 900 kg structural upgrade in casting weight, guideway size, and BBT40 spindle torque.
Turnkey Engineering ·
How to Request an Accurate CNC Machine Quotation: 7 Essential Parameters
Submitting complete part data reduces quotation turnaround from weeks to 24 hours and prevents costly over- or under-sizing of spindles, chucks, and turrets.
Process Optimization ·
Hard Turning on Slant-Bed CNC Lathes vs. Cylindrical Grinding: Cost & Ra Analysis
Replacing secondary cylindrical grinding with CBN hard turning on thermally stabilized slant-bed CNC lathes cuts cycle times by up to 60%.
Information That Helps Us Quote Faster
- · Part drawing (2D PDF or 3D STEP) or max diameter × length / X-Y-Z size
- · Material grade and hardness (e.g. 4140 steel, cast iron, 6061 aluminum)
- · Required tolerance and surface roughness (Ra)
- · Local 3-phase shop voltage (e.g. 380V/50Hz, 220V/60Hz, 480V/60Hz)
